The frames of the John Deere 5 Series utility tractors (specifically the 5E, 5M, and 5R models) are similar in that each is engineered for durability, efficient loader work, and reliable performance, but they do differ in construction details, material strength, and overall capabilities to match each series’ power, comfort, and feature set.
Frame Design & Construction
-

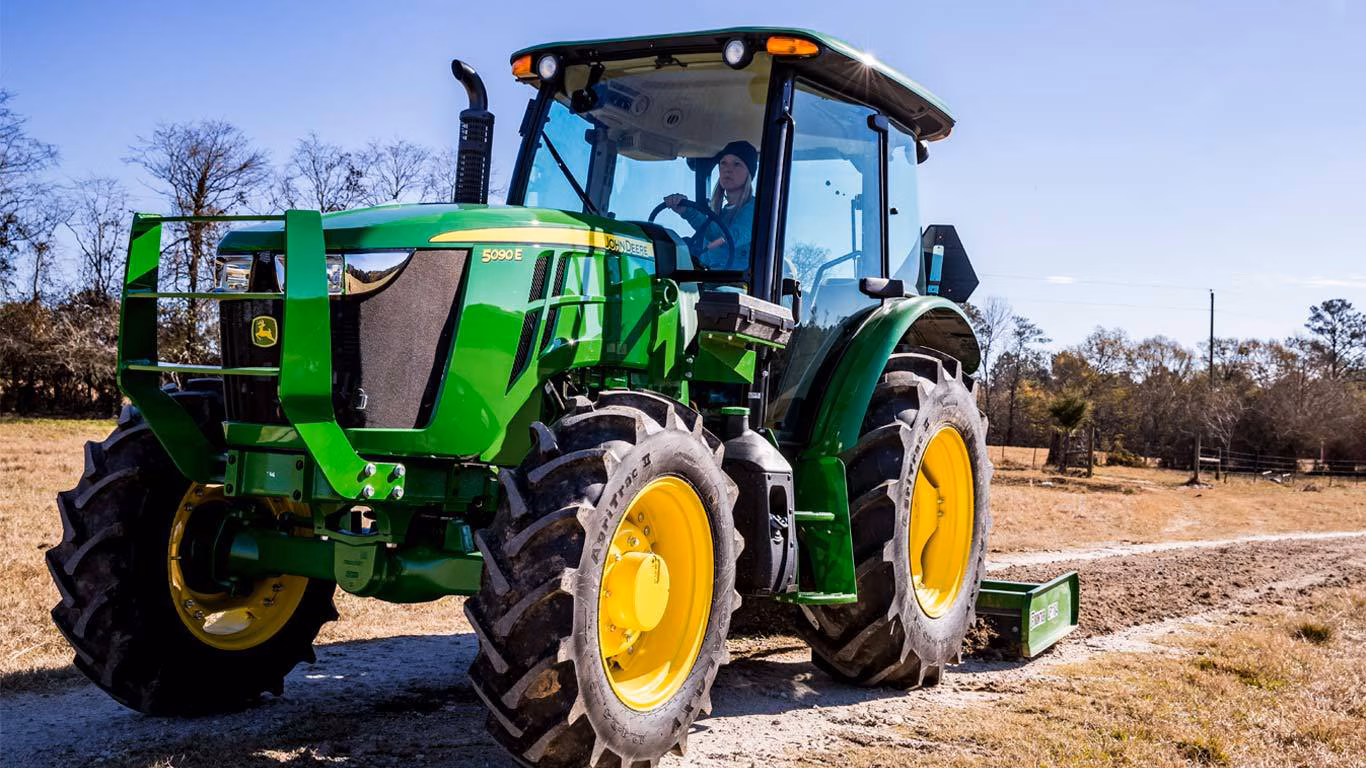

5E Series tractors use heavy-duty steel frames designed for reliability and stability, featuring inboard planetary final drives and a wheelbase built for balance in a variety of applications. Their construction supports hitch capacities and loader operations suitable for daily utility tasks across hay, livestock, and crop work.
-
5M Series frames use a mid-frame design made of rugged cast iron, providing extra strength and rigidity to handle heavier loads and more demanding, weight-intensive operations. The integrated loader and tractor frames are specifically engineered for intense loader work, delivering enhanced stability and better payload capacity. Both flange and rack-and-pinion axles are available for flexibility in wheel spacing and compatibility with dual wheels.
-
5R Series frames are designed with an integrated casting frame for superior strength and a low center of gravity, delivering excellent balance and stability—especially during loader work in tight spaces. The frame is curved for improved maneuverability, and the series includes loader-ready packages straight from the factory. These frames are purpose-built for large front loaders and high-capacity tasks, with built-in protection, damping/suspension features, and easy service access.
Capabilities & Applications
-
All models offer compatibility with loader packages, heavy-duty axles, and flexible transmission/hitch options to ensure superior performance with demanding implements.
-
The choice between series comes down to the level of durability and technology required for the job; 5E suits basic utility work, 5M steps up strength and capacity for heavier use, and 5R offers premium features, best-in-class comfort, and advanced frame integration for high-performance operation in confined spaces or professional environments.
5 Series Frame Features
| Tractor Series | Frame Material & Design | Key Capabilities & Use | Loader/Implement Capacity |
|---|---|---|---|
| 5E | Heavy-duty steel, simple construction | Basic to mid-level utility, reliability | Standard loader, adequate hitch specs |
| 5M | Rugged cast iron, mid-frame, integrated loader features | Heavy-duty, weight-intensive work | Higher payload, flange/bar axles |
| 5R | Integrated casting frame, curved design | Premium, tight-space operations | Maximum loader-ready features, damping |
Even More Info
-
All three series support John Deere loader and mounting frame attachments engineered to safely distribute weight, maintain frame integrity, and maximize durability during loader work.
-
Users upgrading between series benefit from progressive improvements in frame strength, stability, and operator comfort—especially vital for frequent loader usage or working with heavier implements.
-
Consider the scope of your operation, the weight of implements you frequently use, and whether loader work, cab comfort, or turning radius are top priorities when choosing between the 5E, 5M, and 5R.
If you are seeking a solution for loader-intensive utility work or need advice on selecting the right frame and model for your needs, our team will guide you to the best tractor for your operation.
For more details on John Deere 5 Series frames and loader capabilities, visit the John Deere 5 Series Utility Tractor page.
